Ammeters and Voltmeters

Ammeters and voltmeters are essential measuring instruments in electrical circuits. Understanding how they work, their internal resistance, and proper connection methods is crucial for accurate circuit measurements and analysis.

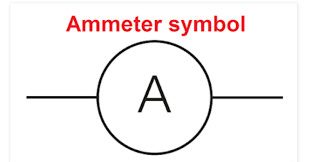

What is an Ammeter?

⚡ Ammeter Function

An ammeter measures electric current flowing through a circuit.

It must be connected in series with the circuit element whose current is being measured.

Ideal Ammeter Properties

Zero Internal Resistance: Ideal ammeter has R_internal = 0
Series Connection: Must be connected in series with the circuit
Current Measurement: Measures current in amperes (A)
Minimal Circuit Disturbance: Should not affect the circuit being measured

Ideal Ammeter

$$R_{ammeter} = 0$$

Real Ammeter Properties

Small Internal Resistance: Typically 0.1Ω to 1Ω
Voltage Drop: Creates small voltage drop across the meter
Current Loading: Slightly reduces current in the circuit
Accuracy: More accurate for higher currents

Example: Ammeter in Circuit

Problem: A circuit has a 12V battery and 6Ω resistor. An ammeter with 0.5Ω internal resistance is connected in series. Find the current reading.

Step 1: Total Resistance

$$R_{total} = R_{resistor} + R_{ammeter} = 6Ω + 0.5Ω = 6.5Ω$$

Step 2: Current Calculation

$$I = \frac{V}{R_{total}} = \frac{12V}{6.5Ω} = 1.85A$$

Step 3: Voltage Drop Across Ammeter

$$V_{ammeter} = IR_{ammeter} = (1.85A)(0.5Ω) = 0.925V$$

Answer

The ammeter reads 1.85A. The voltage drop across the ammeter is 0.925V.

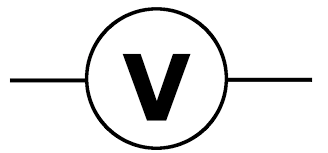

What is a Voltmeter?

⚡ Voltmeter Function

A voltmeter measures voltage difference between two points in a circuit.

It must be connected in parallel with the circuit element whose voltage is being measured.

Ideal Voltmeter Properties

Infinite Internal Resistance: Ideal voltmeter has R_internal = ∞
Parallel Connection: Must be connected in parallel with the circuit
Voltage Measurement: Measures voltage in volts (V)
No Current Draw: Should not draw current from the circuit

Ideal Voltmeter

$$R_{voltmeter} = \infty$$

Real Voltmeter Properties

High Internal Resistance: Typically 10MΩ to 100MΩ
Small Current Draw: Draws tiny current from the circuit
Voltage Loading: Slightly reduces voltage being measured
Accuracy: More accurate for higher resistances

Example: Voltmeter in Circuit

Problem: A 12V battery is connected to a 6Ω resistor. A voltmeter with 10MΩ internal resistance measures the voltage across the resistor. Find the voltmeter reading.

Step 1: Equivalent Resistance

$$R_{eq} = \frac{R_{resistor} \times R_{voltmeter}}{R_{resistor} + R_{voltmeter}}$$ $$R_{eq} = \frac{(6Ω)(10MΩ)}{6Ω + 10MΩ} \approx 6Ω$$

Step 2: Current in Circuit

$$I = \frac{V}{R_{eq}} = \frac{12V}{6Ω} = 2A$$

Step 3: Voltage Across Resistor

$$V_{resistor} = IR_{resistor} = (2A)(6Ω) = 12V$$

Answer

The voltmeter reads 12V. The high internal resistance makes the loading effect negligible.

Internal Resistance Effects

⚡ Loading Effects

Real meters have internal resistance that affects circuit measurements.

The goal is to minimize these effects for accurate measurements.

Ammeter Loading Effect

Series Resistance: Adds resistance to the circuit
Current Reduction: Reduces current in the circuit
Voltage Drop: Creates voltage drop across the meter
Power Dissipation: Dissipates power as heat

Voltmeter Loading Effect

Parallel Resistance: Reduces equivalent resistance
Current Increase: Increases current in the circuit
Voltage Reduction: Reduces voltage being measured
Power Consumption: Consumes power from the circuit

Example: Loading Effect Comparison

Problem: Compare the loading effects of an ideal vs. real ammeter in a 12V, 6Ω circuit.

Ideal Ammeter (R = 0Ω)

$$I_{ideal} = \frac{12V}{6Ω} = 2A$$

Real Ammeter (R = 0.5Ω)

$$I_{real} = \frac{12V}{6.5Ω} = 1.85A$$

Loading Error

$$Error = \frac{I_{ideal} - I_{real}}{I_{ideal}} \times 100\% = \frac{2A - 1.85A}{2A} \times 100\% = 7.5\%$$

Answer

The real ammeter shows 7.5% lower current due to loading effect.

Meter Selection Criteria

For Accurate Current Measurement

Low Internal Resistance: R_ammeter << R_circuit
Appropriate Range: Select range that includes expected current
Precision: Choose meter with sufficient precision
Safety: Ensure meter can handle maximum expected current

For Accurate Voltage Measurement

High Internal Resistance: R_voltmeter >> R_circuit
Appropriate Range: Select range that includes expected voltage
Precision: Choose meter with sufficient precision
Safety: Ensure meter can handle maximum expected voltage

Digital vs. Analog Meters

Digital Meters

High Input Impedance: Very high internal resistance
Precise Readings: Digital display with high precision
Auto-ranging: Automatically selects appropriate range
Additional Features: Often include resistance, capacitance, frequency

Analog Meters

Moving Coil Design: Galvanometer-based measurement
Visual Response: Needle movement shows changes
Range Selection: Manual range selection required
Parallax Error: Reading angle affects accuracy

Key Takeaways

Ammeters: Connected in series, low internal resistance, measure current
Voltmeters: Connected in parallel, high internal resistance, measure voltage
Loading Effects: Real meters affect circuit behavior
Ideal Properties: Ammeter R = 0, Voltmeter R = ∞
Selection Criteria: Choose meters based on circuit requirements
Accuracy: Minimize loading effects for precise measurements
