Determining Induced Current Direction
Overview of Current Direction
Determining the direction of induced current is crucial for understanding electromagnetic induction. While Lenz's Law provides the fundamental principle, there are several practical methods to determine the direction of induced current in different situations.
The direction of induced current depends on the nature of the flux change and the geometry of the conductor. Understanding these methods helps in analyzing electromagnetic devices and solving complex induction problems.
Methods for Determining Current Direction
Method 1: Lenz's Law Analysis
The most fundamental method based on Lenz's Law:
- Identify the change in magnetic flux
- Determine what would oppose this change
- Use the right-hand rule to find current direction
This method works for all situations and is based on energy conservation.
Method 2: Right-Hand Rule for Coils
For circular coils and loops:
- Point your right thumb in the direction of the induced magnetic field
- Your curled fingers show the direction of the induced current
- The induced field opposes the change in flux
This is the most commonly used method for coils and solenoids.
Method 3: Fleming's Right-Hand Rule
For moving conductors in magnetic fields:
- Point your right thumb in the direction of motion
- Point your index finger in the direction of the magnetic field
- Your middle finger shows the direction of induced current
This method is specifically for motional emf situations.

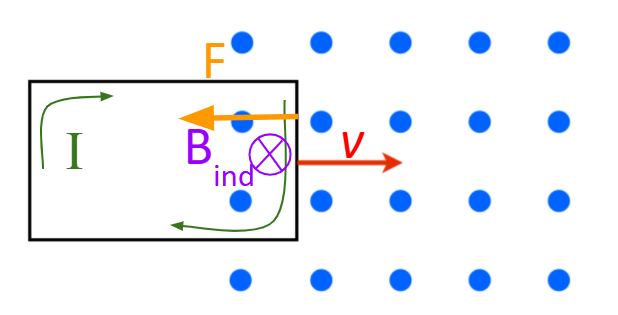

If you already know the direction of the induced magnetic field, point your thumb in the direction and curl your finger. The curl of your fingers determines whether the path of current is clockwise or counterclockwise.
Method 4: Flux Change Analysis
Analyze the change in magnetic flux:
- Increasing flux: current creates opposing field
- Decreasing flux: current creates aiding field
- Constant flux: no current induced
This method helps understand the relationship between flux and current.
Watch for better understanding of right hand rule
Step-by-Step Procedure
General Procedure for Any Situation
- Identify the Flux Change: Determine how the magnetic flux through the conductor is changing
- Apply Lenz's Law: The induced current must oppose this change
- Determine Induced Field Direction: What magnetic field would oppose the change?
- Use Right-Hand Rule: Find the current direction that creates the opposing field
- Verify: Check that the induced current creates a field that opposes the change
Interactive Direction Demonstrator
Current Direction Demonstrator
Select different scenarios to see how induced current direction is determined.
Flux Change: Increasing
Induced Field: Opposing
Current Direction: Counterclockwise
Specific Examples
Example 1: North Pole Moving Toward Coil
Situation: A north pole magnet moves toward a circular coil.
Analysis:
- Flux change: Increasing (north pole approaching)
- Lenz's Law: Induced current must oppose this increase
- To oppose north pole: Need south pole pointing toward magnet
- Right-hand rule: Current flows counterclockwise
- Result: Induced current creates south pole facing the magnet
Answer: Current flows counterclockwise.
Example 2: South Pole Moving Away from Coil
Situation: A south pole magnet moves away from a circular coil.
Analysis:
- Flux change: Decreasing (south pole receding)
- Lenz's Law: Induced current must oppose this decrease
- To oppose decrease: Need south pole pointing toward where magnet was
- Right-hand rule: Current flows clockwise
- Result: Induced current creates south pole facing the receding magnet
Answer: Current flows clockwise.
Example 3: Moving Conductor in Magnetic Field
Situation: A metal rod moves to the right in a magnetic field pointing into the page.
Analysis:
- Use Fleming's right-hand rule
- Thumb: Direction of motion (right)
- Index finger: Magnetic field (into page)
- Middle finger: Induced current (upward)
- Result: Current flows upward in the rod
Answer: Current flows upward in the moving rod.
Common Mistakes and Pitfalls
- Forgetting Lenz's Law: Always remember that induced current opposes the change
- Wrong Right-Hand Rule: Use the correct rule for the specific situation
- Ignoring Geometry: Consider the shape and orientation of the conductor
- Confusing Field and Current: The induced field opposes the change, not the current
- Not Considering Multiple Effects: Some situations have multiple flux changes
Advanced Techniques
Complex Situations
Multiple Loops: For coils with multiple turns, the total current direction is the same, but the emf is multiplied by the number of turns.
Non-Uniform Fields: Consider the field strength and direction at each point of the conductor.
Time-Varying Fields: The direction may change as the field changes over time.
Combined Motions: When both the conductor and field are changing, consider each effect separately.
Quick Quiz: Current Direction
1. When a north pole magnet moves away from a coil, the induced current:
2. For a moving conductor, which rule is most appropriate?
3. If magnetic flux is increasing, the induced current creates a field that:
4. For a coil with multiple turns, the current direction is:
5. The fundamental principle behind current direction is:
Learning Objectives
- Apply Lenz's Law: Use Lenz's Law to determine current direction in any situation
- Use Right-Hand Rules: Apply appropriate right-hand rules for different scenarios
- Analyze Flux Changes: Understand how flux changes determine current direction
- Handle Complex Situations: Determine current direction in complex electromagnetic setups
- Avoid Common Mistakes: Recognize and avoid common pitfalls in direction determination
Key Takeaways
- Lenz's Law is Fundamental: Always start with Lenz's Law for direction determination
- Opposition Principle: Induced current always opposes the change that created it
- Right-Hand Rules: Use the appropriate rule for the specific situation
- Energy Conservation: Current direction ensures energy conservation
- Practice is Essential: Regular practice with different scenarios improves understanding
