Lenz's Law and Direction

Overview of Lenz's Law

Lenz's Law, formulated by Heinrich Lenz in 1834, is a fundamental principle that determines the direction of induced currents in electromagnetic induction. It states that the direction of an induced current is such that it creates a magnetic field that opposes the change in magnetic flux that produced it.

This law is a manifestation of the principle of conservation of energy. If the induced current were to create a field that aided the change, it would create a perpetual motion machine, which violates energy conservation. Lenz's Law ensures that electromagnetic induction always opposes the change that created it.

Lenz's Law Statement

Lenz's Law

The induced current flows in a direction that creates a magnetic field opposing the change in magnetic flux that produced it.

This is mathematically expressed by the negative sign in Faraday's Law:

\[ \mathcal{E} = -\frac{d\Phi_B}{dt} \]

The negative sign indicates that the induced emf opposes the change in flux.

Key Concepts

Energy Conservation

Lenz's Law is a direct consequence of the conservation of energy. If the induced current aided the change in flux, it would create energy from nothing, which is impossible.

The induced current always creates a magnetic field that opposes the change, requiring work to be done against the induced field.

Work must be done to overcome the opposition
Energy is conserved in the process
No perpetual motion is possible

Direction Determination

To determine the direction of induced current:

Identify the change in magnetic flux
Determine what would oppose this change
Use the right-hand rule to find current direction

The induced current creates a magnetic field that opposes the original change.

Right-Hand Rule for Induced Current

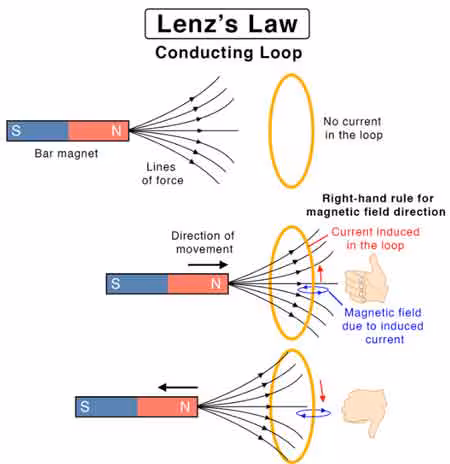

Point your right thumb in the direction of the induced magnetic field (opposing the change). Your curled fingers show the direction of the induced current.

For a coil: If the flux is increasing, the induced current creates a field pointing opposite to the original field.

Increasing flux: current opposes the increase
Decreasing flux: current opposes the decrease

Practical Applications

Lenz's Law explains many electromagnetic phenomena:

Eddy current braking
Magnetic levitation
Induction motors
Magnetic damping
Transformer operation

Understanding Lenz's Law is crucial for designing electromagnetic devices.

Magnetic Force and Lenz's Law

When a rod moves through a magnetic field, the induced current creates a magnetic force that opposes the motion:

\[ F = ILB \]

This force is a direct manifestation of Lenz's Law - the induced current creates a field that opposes the change (motion).

Force opposes motion (energy conservation)
Work must be done to overcome the force
Used in eddy current brakes
Explains magnetic drag effects

Interactive Lenz's Law Simulation

Lenz's Law Demonstration

Move the magnet to see how the induced current direction opposes the change in flux.

Magnet Direction: Movement:

Flux Change: Decreasing

Induced Current Direction: Clockwise

Induced Field Direction: Into Page

Direction Analysis Examples

Example 1: Magnet Moving Toward Coil

Situation: A north pole magnet moves toward a coil.

Analysis:

The magnetic flux through the coil is increasing
Lenz's Law requires the induced current to oppose this increase
The induced current creates a magnetic field pointing away from the magnet
Using the right-hand rule, the current flows counterclockwise

Result: The induced current flows counterclockwise, creating a field that opposes the approaching magnet.

Example 2: Magnet Moving Away from Coil

Situation: A north pole magnet moves away from a coil.

Analysis:

The magnetic flux through the coil is decreasing
Lenz's Law requires the induced current to oppose this decrease
The induced current creates a magnetic field pointing toward the magnet
Using the right-hand rule, the current flows clockwise

Result: The induced current flows clockwise, creating a field that attracts the receding magnet.

Example 3: Changing Current in Nearby Wire

Situation: A wire carrying increasing current is near a loop.

Analysis:

The magnetic field from the wire is increasing
The flux through the loop is increasing
The induced current opposes this increase
The induced current creates a field opposite to the wire's field

Result: The induced current flows in the opposite direction to the wire current.

Example Problems

Example 1: Magnet and Coil

Problem: A south pole magnet is moved toward a circular coil. What is the direction of the induced current?

Solution:

Identify the change: South pole approaching increases flux
Lenz's Law: Induced current must oppose this increase
To oppose south pole, need north pole pointing toward magnet
Right-hand rule: Current flows clockwise

Answer: The induced current flows clockwise.

Example 2: Rotating Loop

Problem: A loop rotates in a magnetic field. When the loop is perpendicular to the field, what is the direction of induced current?

Solution:

At perpendicular position, flux is maximum
As loop continues rotating, flux decreases
Lenz's Law: Induced current opposes the decrease
Current creates field that tries to maintain the flux
Direction depends on rotation direction

Answer: The current direction depends on the rotation direction and field orientation.

Example 3: Sliding Conductor

Problem: A metal rod slides on conducting rails in a magnetic field. What is the direction of induced current?

Solution:

The moving rod creates a changing area
This increases the flux through the loop
Lenz's Law: Induced current opposes this increase
Current creates field that opposes the motion
This creates a force opposing the motion (magnetic drag)

Answer: The current flows in a direction that creates a force opposing the motion.

Formula Derivations Using Lenz's Law

Derivation 1: Why Induced Current Opposes Motion

Derive: Why the magnetic force \(F = ILB\) opposes motion

Step-by-Step:

When a rod moves through a magnetic field, electrons experience Lorentz force
This creates a current flow in the rod: \(I = \frac{BLv}{R}\)
The current-carrying rod experiences magnetic force: \(F = ILB\)
Substitute: \(F = \frac{BLv}{R} \cdot LB = \frac{B^2L^2v}{R}\)
By Lenz's Law, this force must oppose the motion
Therefore, the induced current flows in a direction that creates a force opposing the motion

Result: The induced current creates a force that opposes the motion (Lenz's Law)

Derivation 2: Energy Conservation in Lenz's Law

Show: How Lenz's Law ensures energy conservation

Step-by-Step:

Work done by external force: \(W = F_{ext} \cdot d\)
Power dissipated in resistance: \(P = I^2R = \frac{(BLv)^2}{R}\)
If induced current aided motion, we would get: \(P = I^2R\) (positive)
But no external work is being done, violating energy conservation
Lenz's Law ensures: \(P = I^2R\) (positive) requires external work
Therefore, induced current must oppose the change

Result: Lenz's Law is a manifestation of energy conservation

Derivation 3: Direction of Induced Current

Derive: How to determine current direction using Lenz's Law

Step-by-Step:

Identify the change in magnetic flux
Determine what magnetic field would oppose this change
Use right-hand rule to find current direction that creates this opposing field
For increasing flux: induced current creates field opposite to original
For decreasing flux: induced current creates field in same direction as original

Result: The induced current direction is determined by what opposes the flux change

Applications of Lenz's Law

Eddy Current Brakes: Use induced currents to create opposing forces
Magnetic Levitation: Use induced currents to create repulsive forces
Induction Motors: Use induced currents to create rotational motion
Magnetic Damping: Use induced currents to slow down moving objects
Transformers: Use induced currents to transfer energy between circuits
Magnetic Sensors: Use induced currents to detect changes in magnetic fields

Quick Quiz: Lenz's Law

1. What does Lenz's Law determine?

The magnitude of induced emf

The direction of induced current

The strength of magnetic fields

The energy stored in inductors

2. When a north pole magnet moves toward a coil, the induced current:

Aids the motion

Opposes the motion

Has no effect

Reverses direction

3. Lenz's Law is a manifestation of:

Conservation of energy

Conservation of charge

Conservation of momentum

Conservation of mass

4. If magnetic flux is decreasing, the induced current:

Also decreases

Creates a field to oppose the decrease

Becomes zero

Reverses direction

5. The negative sign in Faraday's Law represents:

Energy loss

Lenz's Law

Resistance

Power dissipation

Learning Objectives

State Lenz's Law: Explain the relationship between induced current direction and flux changes
Determine Current Direction: Use Lenz's Law to find the direction of induced currents
Apply Right-Hand Rule: Use the right-hand rule for induced currents
Understand Energy Conservation: Relate Lenz's Law to energy conservation
Connect to Applications: Apply Lenz's Law to real-world electromagnetic devices

Key Takeaways

Opposition Principle: Induced currents always oppose the change that created them
Energy Conservation: Lenz's Law is a manifestation of energy conservation
Direction Determination: Use the right-hand rule to find induced current direction
Practical Applications: Lenz's Law explains many electromagnetic phenomena
Mathematical Expression: The negative sign in Faraday's Law represents Lenz's Law
