Sources of Magnetic Fields
Understanding the sources of magnetic fields is fundamental to electromagnetism. Magnetic fields are created by moving electric charges, magnetic dipoles, and magnetic materials. Each source type produces characteristic field patterns and follows specific physical laws.
Classification of Magnetic Field Sources
🧲 Primary Sources
Magnetic fields are created by three main types of sources:
- Moving electric charges - Current-carrying wires and electron beams
- Magnetic dipoles - Permanent magnets, current loops, and atomic dipoles
- Magnetic materials - Ferromagnetic, paramagnetic, and diamagnetic substances

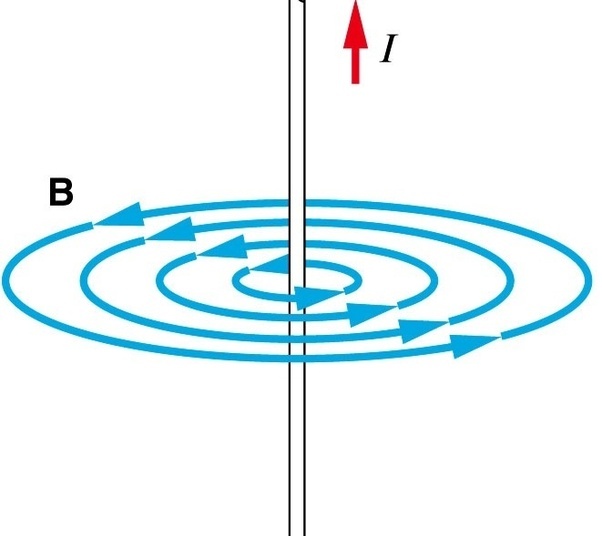

Diagram showing the three main categories of magnetic field sources.
Current as a Magnetic Field Source
⚡ Electric Current Sources
Electric current is the most fundamental source of magnetic fields.
Any moving electric charge creates a magnetic field. In wires, the collective motion of electrons (current) creates measurable magnetic fields.
Key Principle
- Moving Charges: Any electric charge in motion creates a magnetic field
- Current Density: Current per unit area (A/m²) for detailed calculations
- Current: Total charge flow per unit time (A) for simple cases

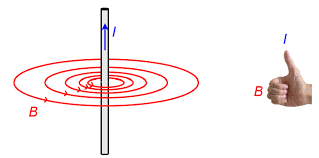

- Field Direction: Determined by right-hand rule for current-carrying wires
The magnetic field from a wire depends on your reference point. To better explain:
Example: Current and Magnetic Field Relationship
Problem: Explain how electric current creates a magnetic field.
Step 1: Moving Charges
- Electrons move through the wire
- Each moving electron creates a tiny magnetic field
- Fields from all electrons add together
Step 2: Current Flow
- Current is the rate of charge flow
- Higher current = more moving charges
- Stronger magnetic field with higher current
Step 3: Field Pattern
- Field lines form circles around the wire
- Field strength decreases with distance
- Direction follows right-hand rule
Answer
Electric current creates magnetic fields through the motion of charged particles, with field strength proportional to current and field direction determined by the right-hand rule.
Magnetic Dipoles
🔗 Magnetic Dipole Sources
Magnetic dipoles are the second major source of magnetic fields.
They consist of equal and opposite magnetic poles separated by a small distance.
Types of Magnetic Dipoles
- Current loops: Circular or rectangular wire loops carrying current
- Permanent magnets: Bar magnets, horseshoe magnets, and magnetic materials
- Atomic dipoles: Electron spin and orbital motion within atoms
- Molecular dipoles: Aligned atomic dipoles in magnetic materials
Example: Current Loop as Magnetic Dipole
Problem: Explain how a current loop acts as a magnetic dipole.
Step 1: Current Flow
- Current flows around the loop
- Creates magnetic field perpendicular to loop plane
- Field direction follows right-hand rule
Step 2: Dipole Characteristics
- North pole on one side of loop
- South pole on opposite side
- Magnetic moment proportional to current × area
Step 3: Field Pattern
- Field lines emerge from north pole
- Field lines enter south pole
- Forms characteristic dipole pattern
Answer
A current loop creates a magnetic dipole with north and south poles, producing a characteristic dipole field pattern around the loop.
Magnetic Materials
🧲 Material-Based Sources
Materials can enhance or modify magnetic fields through their atomic properties.
Different materials respond differently to magnetic fields based on their atomic structure.
Material Classification
- Ferromagnetic: Strongly attracted to magnets (iron, nickel, cobalt)
- Paramagnetic: Weakly attracted to magnets (aluminum, oxygen, platinum)
- Diamagnetic: Weakly repelled by magnets (copper, water, bismuth)
- Non-magnetic: No significant response to magnetic fields
Example: Ferromagnetic Materials
Problem: Explain why iron is strongly attracted to magnets.
Step 1: Atomic Structure
- Iron atoms have unpaired electrons
- Electron spins create atomic magnetic moments
- Moments can align with external field
Step 2: Domain Formation
- Groups of atoms form magnetic domains
- Domains can align with external field
- Creates strong magnetic response
Step 3: Field Enhancement
- Aligned domains create additional field
- Field is much stronger than applied field
- Results in strong attraction to magnet
Answer
Iron is strongly attracted to magnets because its atomic magnetic moments can align with external fields, creating domains that enhance the magnetic field strength.
Field Patterns and Symmetry
🎯 Characteristic Field Patterns
Different sources create characteristic field patterns that can be identified and analyzed.
Understanding these patterns helps in identifying field sources and predicting field behavior.
Common Field Patterns
- Circular fields: Around straight current-carrying wires
- Uniform fields: Inside long solenoids and between parallel plates
- Dipole fields: Around bar magnets and current loops
- Toroidal fields: Inside toroidal coils and some transformers
- Complex patterns: From multiple sources or irregular geometries
Example: Identifying Field Sources
Problem: Identify the source of a magnetic field based on its pattern.
Step 1: Analyze Field Lines
- Circular pattern suggests current-carrying wire
- Uniform pattern suggests solenoid or parallel plates
- Dipole pattern suggests bar magnet or current loop
Step 2: Check Field Strength
- Strong field near source
- Decreasing strength with distance
- Rate of decrease indicates source type
Step 3: Determine Direction
- Right-hand rule for current sources
- North to south for dipole sources
- Consistent with field line direction
Answer
The field pattern reveals the source type: circular fields indicate current-carrying wires, uniform fields indicate solenoids, and dipole patterns indicate magnets or current loops.
Superposition Principle
➕ Superposition of Magnetic Fields
Magnetic fields from multiple sources add vectorially.
This principle allows us to calculate complex field configurations by adding contributions from individual sources.
Mathematical Expression
Key Applications
- Multiple wires: Add fields from each current-carrying wire
- Complex geometries: Break down into simple components
- Material effects: Add applied field and material response
- Field cancellation: Opposing fields can cancel each other
Example: Two Parallel Wires
Problem: Calculate the total magnetic field from two parallel current-carrying wires.
Step 1: Individual Fields
- Calculate field from wire 1 at point P
- Calculate field from wire 2 at point P
- Both fields are vectors with direction
Step 2: Vector Addition
- Add field vectors component by component
- Consider direction of each field
- Result is total field at point P
Step 3: Field Patterns
- Fields can reinforce or cancel
- Depends on current directions
- Creates complex field patterns
Answer
The total magnetic field is the vector sum of the individual fields from each wire, which can reinforce or cancel depending on current directions.
Field Strength Relationships
General Relationships
- Current sources: Field ∝ Current / Distance
- Dipole sources: Field ∝ Magnetic moment / Distance³
- Material enhancement: Field ∝ Permeability × Applied field
- Multiple sources: Field = Vector sum of individual fields
⚠️ Common Misconceptions
- Stationary charges: Magnetic fields are NOT created by stationary charges
- Magnetic monopoles: Do not exist in nature (as far as we know)
- Field strength: Decreases with distance, but rate varies by source type
- Field properties: Magnetic fields are always solenoidal (∇⋅B = 0)
- Material response: Not all materials respond the same way to magnetic fields
Key Takeaways
- Primary Sources: Moving charges, magnetic dipoles, and magnetic materials
- Current Sources: Most fundamental source of magnetic fields
- Dipole Sources: Include current loops, permanent magnets, and atomic dipoles
- Material Effects: Ferromagnetic, paramagnetic, and diamagnetic responses
- Field Patterns: Characteristic patterns help identify source types
- Superposition: Total field is vector sum of individual contributions
- No Monopoles: Magnetic monopoles do not exist in nature
- Distance Dependence: Field strength decreases with distance from source
