Solenoid Applications

Solenoids find widespread use in modern technology due to their ability to create controlled magnetic fields and convert electrical energy into mechanical motion. Understanding these applications connects to fundamental concepts like magnetic forces, magnetic fields, and energy conversion.

Electromagnetic Actuators

⚡ Converting Electrical to Mechanical Energy

Solenoids are used as electromagnetic actuators that convert electrical energy into linear motion:

Working Principle

The operation relies on magnetic forces:

  1. Current Flow: When current flows through the solenoid, it creates a magnetic field
  2. Magnetic Force: The field exerts a force on a ferromagnetic plunger or armature
  3. Linear Motion: The plunger moves along the axis of the solenoid
  4. Mechanical Work: This motion can perform mechanical work

Example: Solenoid Valve Force

Problem: A solenoid valve has 500 turns and carries 2.0 A of current. The plunger has a cross-sectional area of 2.0 cm². Calculate the magnetic force on the plunger.

Step 1: Calculate Magnetic Field

Using the solenoid field formula from solenoid basics:

\[ B = \mu_0 nI = \mu_0 \left(\frac{500}{0.1}\right)(2.0) = 1.26 \times 10^{-2} \text{ T} \]

Step 2: Calculate Magnetic Force

The force on a ferromagnetic material in a magnetic field is:

\[ F = \frac{B^2 A}{2\mu_0} = \frac{(1.26 \times 10^{-2})^2 (2.0 \times 10^{-4})}{2(4\pi \times 10^{-7})} = 0.126 \text{ N} \]

Step 3: Interpretation

This force can move the plunger to open or close the valve.

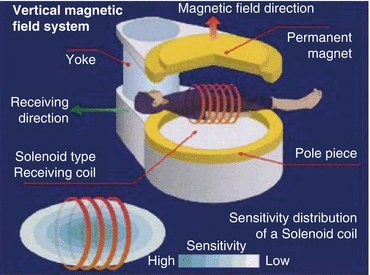

Magnetic Resonance Imaging (MRI)

🔬 Medical Imaging Applications

MRI machines use powerful solenoids to create uniform magnetic fields:

Field Requirements

Particle Accelerators

Beam Focusing and Steering

Magnetic Levitation (Maglev)

🚄 Transportation Applications

Maglev trains use solenoids for levitation and propulsion:

Working Principle

Maglev systems use the principles of magnetic forces:

  1. Repulsive Force: Like poles repel, creating levitation
  2. Attractive Force: Unlike poles attract, can also be used
  3. Field Control: Varying current controls force magnitude
  4. Stability: Feedback systems maintain stable levitation

Magnetic Sensors and Detectors

Hall Effect Sensors

Fluxgate Sensors

Electric Motors and Generators

Motor Applications

Generator Applications

Factors Affecting Performance

Design Considerations

Efficiency Considerations

Quick Quiz: Solenoid Applications

1. What type of energy conversion occurs in a solenoid actuator?

Electrical to mechanical
Mechanical to electrical
Thermal to electrical
Chemical to electrical

2. What is the main advantage of maglev trains?

Lower cost
Reduced friction
Higher speed
Lower energy consumption

3. What type of sensor uses the Hall effect?

Temperature sensor
Magnetic field sensor
Pressure sensor
Light sensor

Key Takeaways
